Octagonal Pole

Trusted Octagonal Pole Manufacturer in India

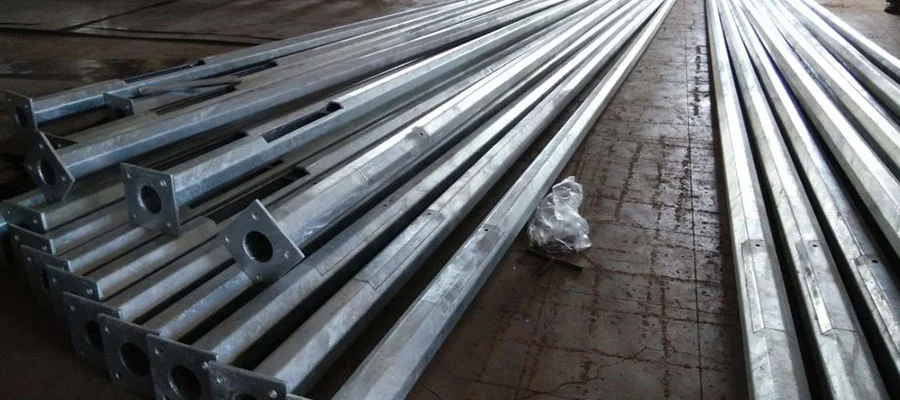

Octagonal Poles are generally some continuously taper octagonal cross-section (can be customized for other sided also) that have one or more segment. On top, it has a bracket to mount the luminary. Generally, the height of an octagonal light pole varies between 3 to 15 meters and is made of galvanized steel.

Octagonal Poles are used to illuminate private residential areas, commercial and industrial locations securely. The street lighting pole range is designed with an outreach arm, in either single or double arrangement, as per customer specifications.

Design of an Octagonal light Pole

These days the octagonal light poles are immensely used for street, stadium, residential lighting structures. The design of an octagonal pole is planned and structured, considering the wind resistance and the workability of the arrangements.

Galvanized octagonal Pole are mounted above the ground and will not rust due to hot-dip galvanized protection. These types of poles have internal flushed type doors. These poles are made up of HR Coils which can easily be procured high tensional gaze 490 MPA; hence increasing the safety factor of the pole.

Specifications of an Octagonal Pole

  • The tapered round pole range is standard base plate mounted; however, in-ground mounted can be designed.
  • All poles are hot-dip galvanized and can be powder coated or painted.
  • All pole accessories such as luminaire cross arms, adaptors, head-frames, platforms, Lad SAF system, climbing rungs and lightning protection rods are available.
  • Extra access doors for the larger tapered round poles.
  • Security or tamper-proof screws for access door covers.
  • The product data sheet represents the standard range, but other heights and section sizes can be custom designed to meet specific requirements.
  • Slip joint assembly required for poles over 11 meters in height.

Subham Enterprise is a well-known name to supply and manufacture octagonal lighting poles throughout the country. Being one of the leaders amongst the octagonal light pole manufacturers in India, we have securely lightened up private residences, commercial and industrial areas. We design the octagonal street lighting poles with an outreach arm, in either single or double arrangement, as per customer specifications. Octagonal poles can be equipped with individual brackets, banner arms, high-door positions and additional requirements from the clients.

Quality Standards of Our Octagonal Light Poles

Our octagonal light poles are hot-dip galvanized, and we use the single dip seven tank process to perform this. We make the octagonal light poles in such a way that they stay a minimum life of 25 years. We manufacture all the lighting poles in modern automatic machinery to secure a better quality.

Poles Sections: Octagonal lighting poles are available in ascending heights from 3 to 15 meters. You can use them for post top applications or demountable or integral bracket arm arrangements.

Corrosion Protection: The standard corrosion protection system is hot-dip galvanized per ISO 14001:2015 standards. Besides, a variety of root treatments and full paint specification options are available.

Fixing Type: Our octagonal lighting poles are bolted on a pre-cast foundation with a set of four foundation bolts to offer greater rigidity and support.

Top Mountings: We additionally supply galvanized mounting bracket along with the octagonal lighting poles for installation of the luminaries.

Why Should You Choose Us Over Other Octagonal Pole Suppliers in India?

When you specify Subham Enterprise, you specify the proven reliable products that will give you years of trouble-free performance. We are the nation’s favourite octagonal pole manufacturers and installers and have worked with the biggest names all across the spectrum.

Our octagonal light poles are rooted or flanged and can be of an optional paint finish. You can ask for the locations, windage and brackets as per your preferences

Advantages of Our Octagonal Light Poles

  • Easy installation
  • Galvanized and durable
  • Easy maintenance
  • Sleek and beautiful design

Being a leading octagonal lighting pole manufacturer in India, we use only high-strength steel sheet in manufacturing our light poles. Our octagonal poles can be used primarily as street lighting poles or for low-voltage light distribution projects.

We offer vandal-resistant and weatherproof octagonal light poles to ensure you the best quality lighting installation available in the market. For more information, contact our octagonal pole manufacturers in India. You can also reach us and request for a quote by just submitting the enquiry form below.
